TITAN aluminium formwork beams
Versatile. Long-lasting. Lightweight.

The aluminium formwork beams are intrinsic to the ISCHEBECK TITAN modular system and can be used in many ways. Whether as primary and transverse beams in conventional slab formwork, as additions to traditional scaffolds or as bridging beams with a high load-carrying capacity, the features of our aluminium formwork beams are impressive.

Advantages

High-strength aluminium
High load-carrying capacity for a low self-weight
Robust and weather-resistant
Lengths to suit the needs of contractors
With nailing batten
Calculations to EN 1999-1-1 (Eurocode 9)

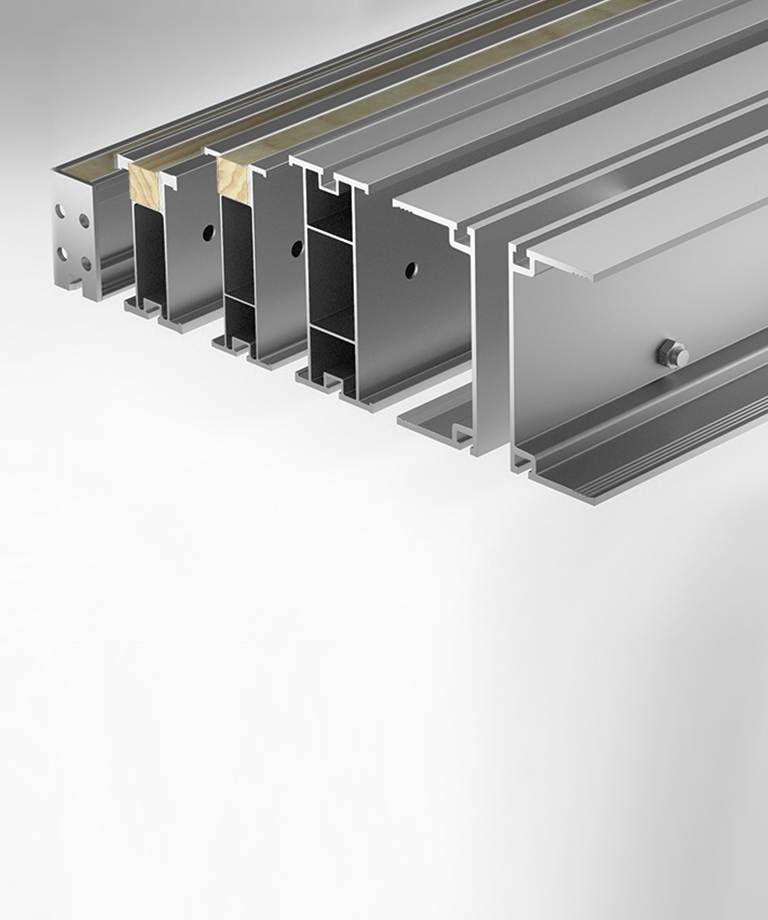

All TITAN aluminium formwork beams

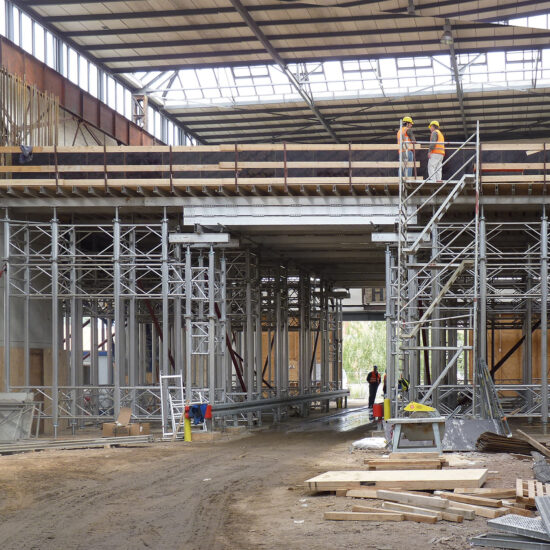

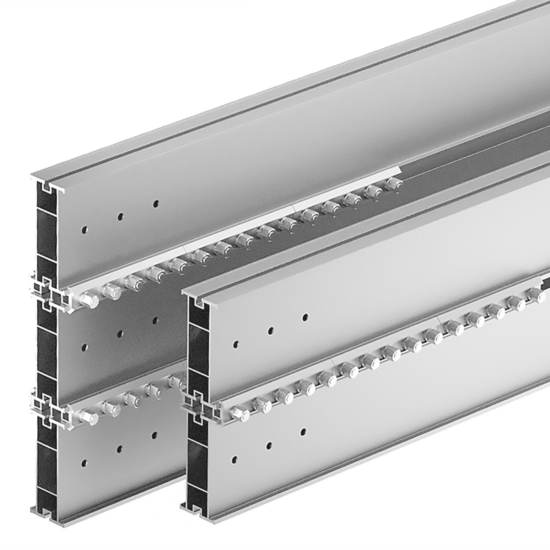

Bridging beams
TITAN

Type 2 comparable to HEB 200, type 3 comparable to HEB 240 – 280
TITAN aluminium beam couplers are used to create shear-resistant connections in a stack of two or three TITAN 225 beams to produce a bridging beam with a higher load-carrying capacity.
The much lighter alternative to a steel beam
Six beam lengths: from 11′-9″ (3.60 m) to 23′-7″ (7.20 m)
Verified typical calculations

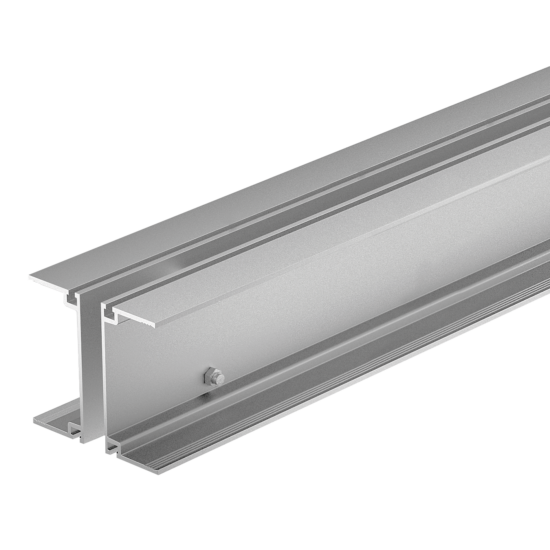

Aluminium formwork beam
TITAN 220

Heavy-duty twin channel section
Available in three lengths,
4′-3″ (1.30 m), 9′-0″ (2.75 m), 39′-0″ (11.90 m)
8,7″ (220 mm) deep
Weight 10 lb/ft (15 kg/m)
For use as waling or for supporting working platforms

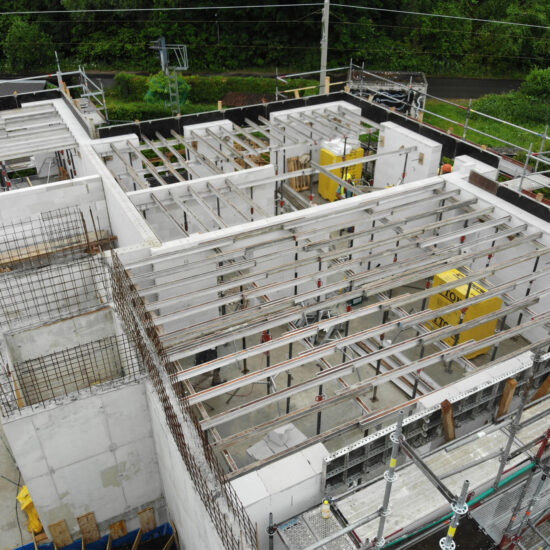

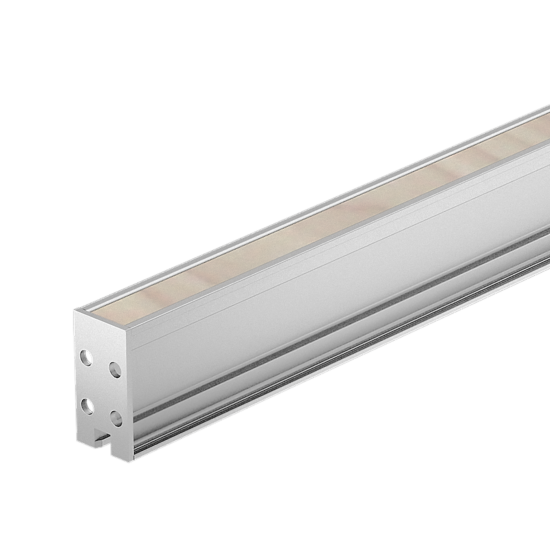

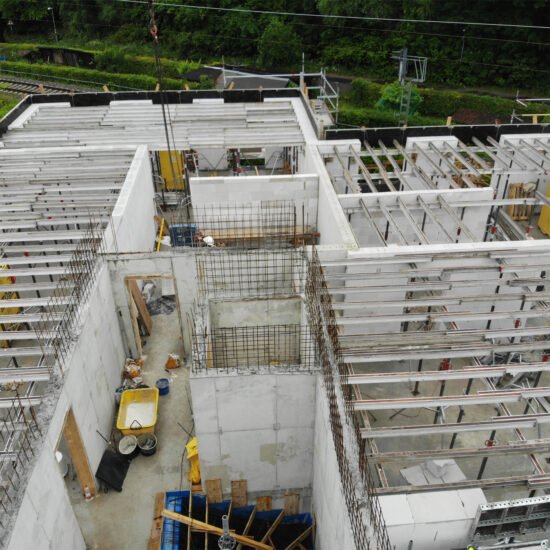

Aluminium formwork beam
TITAN 120

With welded end plate
Available in two lengths,
8′-2″ (2.50 m) and 12′-3″ (3.75 m)
4,72″ (120 mm) deep
Weight 1,95 lb/ft (2.9 kg/m)

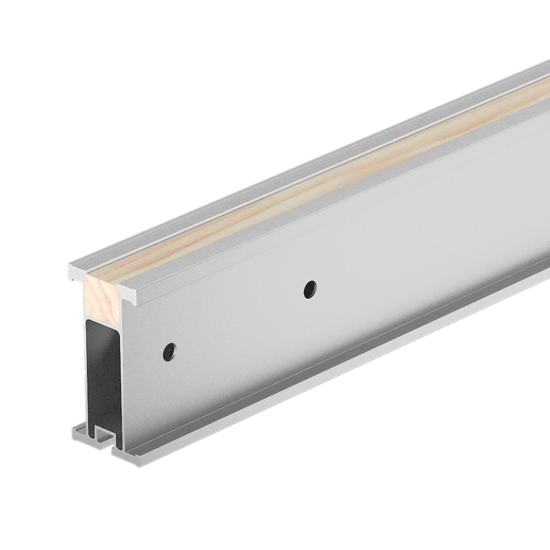

Aluminium formwork beam
TITAN 160 H

With integral nailing batten and multipurpose slot
Available in nine lengths, from 9′-0″ (2.75 m ) to 39′-0″ (11.90 m)
6,3″ (160 mm) deep
Weight 4,4 lb/ft (6.5 kg/m)

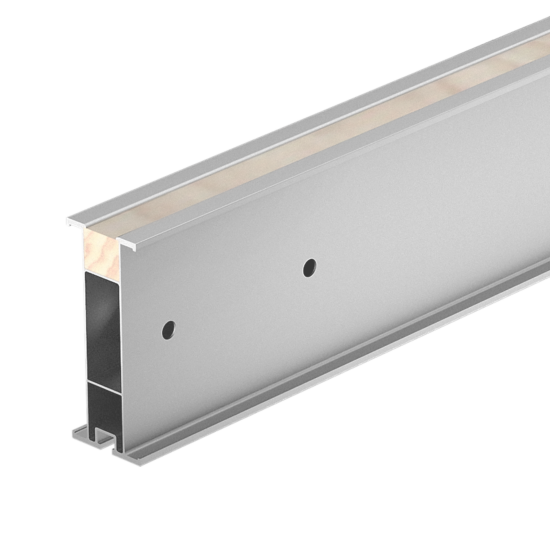

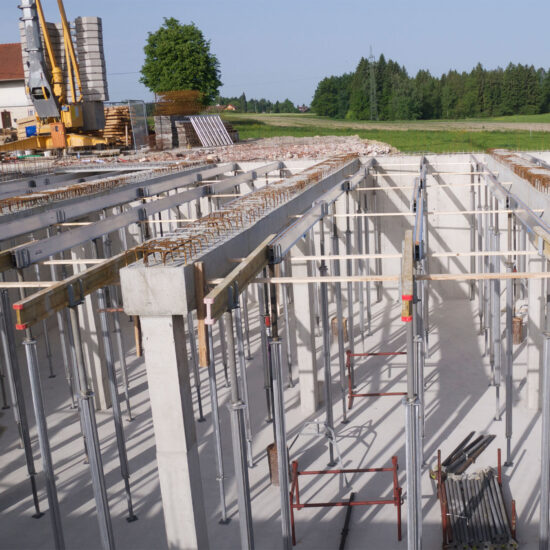

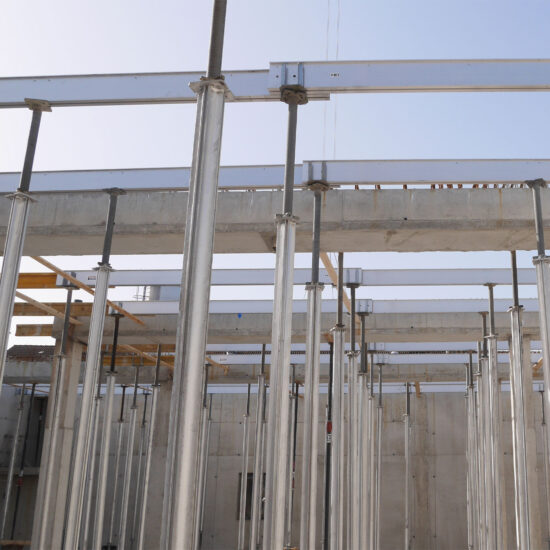

Aluminium formwork beam
TITAN 200

Available in three lengths,
8′-2″ (2.50 m), 12′-9″ (3.90 m), 16′ (4.90 m)
7,9″ (200 mm) deep
Weight 3,6 lb/ft (5.3 kg/m)

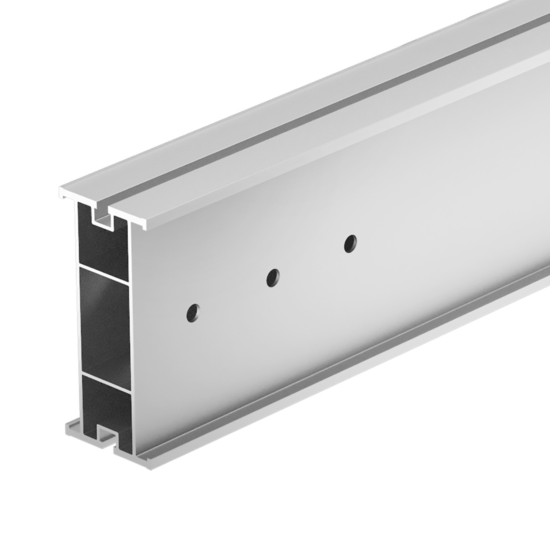

Aluminium formwork beam
TITAN 225

With two multipurpose slots
Available in nine lengths, from 4′-11″ (1.50 m) to 29′-6″ (9.00 m)
8,9″ (225 mm) deep
Weight 5,7 lb/ft (8.5 kg/m)
