System components & accessories for aluminium falsework
Well-thought-out, economical.

The primary element of the TITAN aluminium Megashore system is the TITAN adjustable aluminium leg. When combined with extension pieces, ledger frames, screw jacks and TITAN aluminium formwork beams, it is possible to erect falsework to suit your needs exactly. Well-thought-out accessories complement the range.

  • Flexible usage for all kinds of loads
  • Modular system made from high-grade aluminium
  • Assembly is quick and easy
  • System components and accessories are fully developed and economic

The system components & accessories for aluminium falsework

Adjustable aluminium leg
TITAN

  • Extended lengths and permissible loads:
    • Size 2:
      5′-6″ – 9′-6″ (1.70 – 2.90 m),
      12,139 – 28,775 lbs (54 – 128 kN)
    • Size 4:
      9′-6″ – 13′-5″ (2.90 – 4.10 m),
      8,250 – 28,775 lbs (36.7 – 128.0 kN)
    • Size 6:
      14′-1″ – 18′-0″ (4.30 – 5.50 m),
      5,755 – 13,196 lbs (25.6 – 58.7 kN)
  • Screw jack and outer tube completely in aluminium
  • Extendable
  • Includes slot for connecting ledger frames
  • Heights up to 80′-8″ (24.60 m) as support tower (special heights possible on request)
  • National Technical Approval
    Z-8.312-868
  • Aluminium telescopic prop according to DIN EN 16031

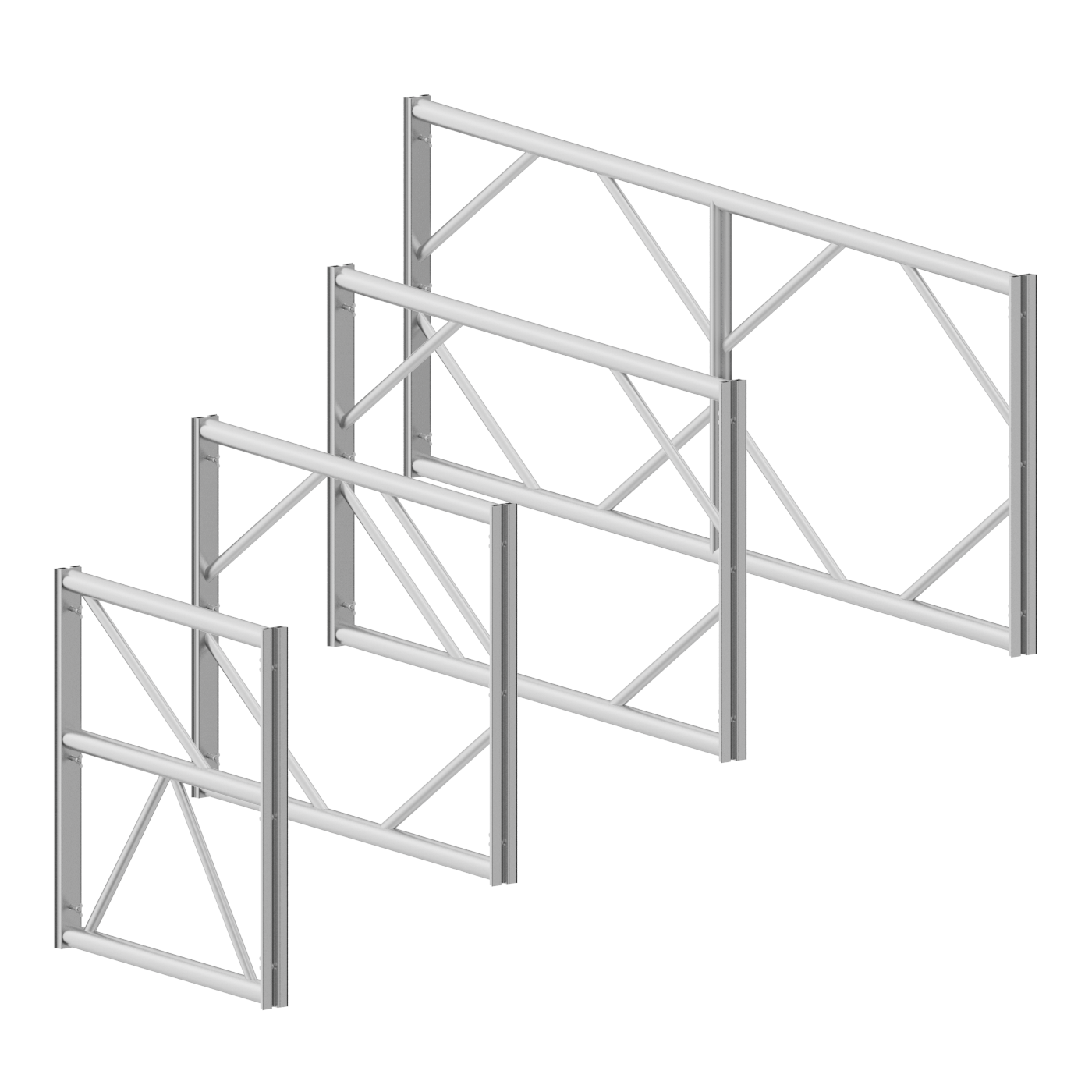

Aluminium ledger frames

  • Available in seven sizes (1′-11″ – 9′-10″, 600 – 3000 mm)
  • All frames 2′-9″ (850 mm) high
  • The 48 mm tubes are suitable for attaching standard scaffold couplers
  • Frame/leg connection in compliance with National Technical Approval Z-8.22-874
  • Quickly fixed to the outer tube of a leg

TITAN aluminium formwork beams

  • High-strength aluminium
  • High load-carrying capacity for a low self-weight
  • Robust and unaffected by the weather
  • Lengths to suit the needs of contractors
Learn more

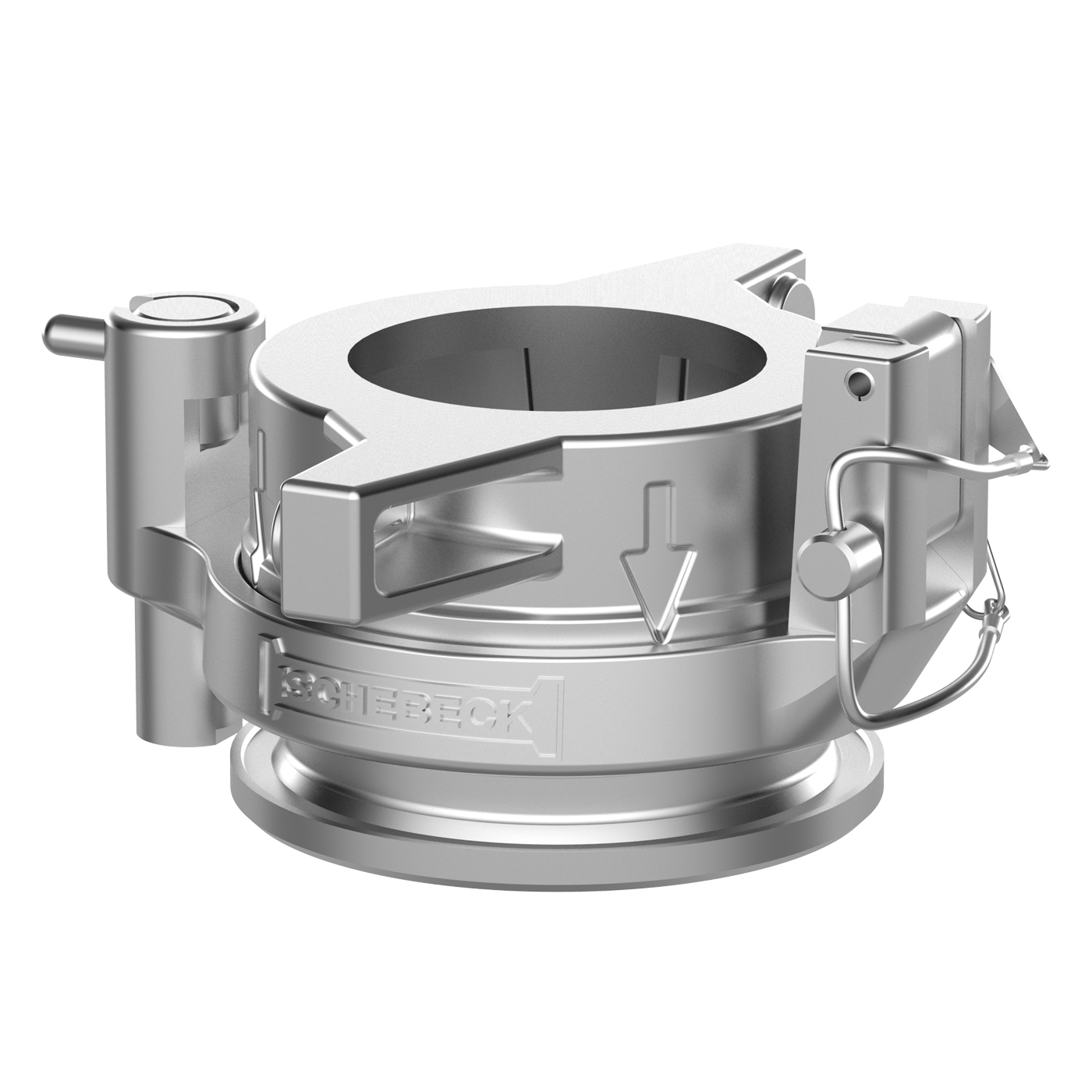

Quick Strike

  • Fast striking where heavy loads are involved
  • Easily retrofitted to TITAN adjustable aluminium legs
  • Effortless
  • Reduces site noise – for a better environment for all
  • Faster striking times
  • No damage to materials
  • Ideal under confined site conditions
  • National Technical Approval Z-8.22-874

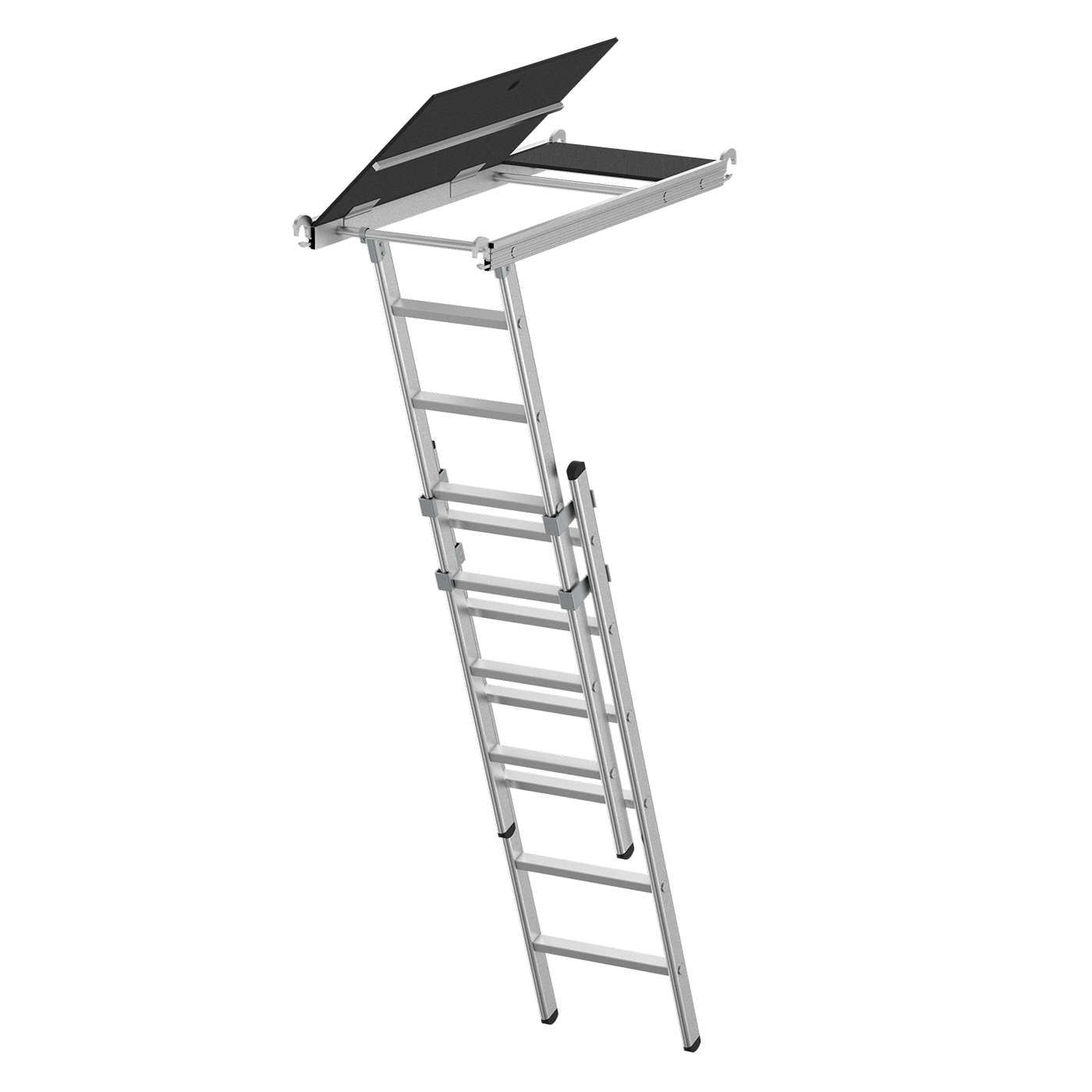

Access panel
with aluminium telescopic ladder

  • Easily integrated into any four-leg tower
  • Safe access to working platforms within the tower
  • Safe working on guarded platforms
  • Simply clipped in place, cannot become accidentally detached
  • Lightweight aluminium parts
  • Available in two sizes: 5′-2″ (1.60 m), 4′-1″ (1.25 m)
  • For landing spacings from 5′-2″ – 4′-1″ (1.80 to 3.00 m)

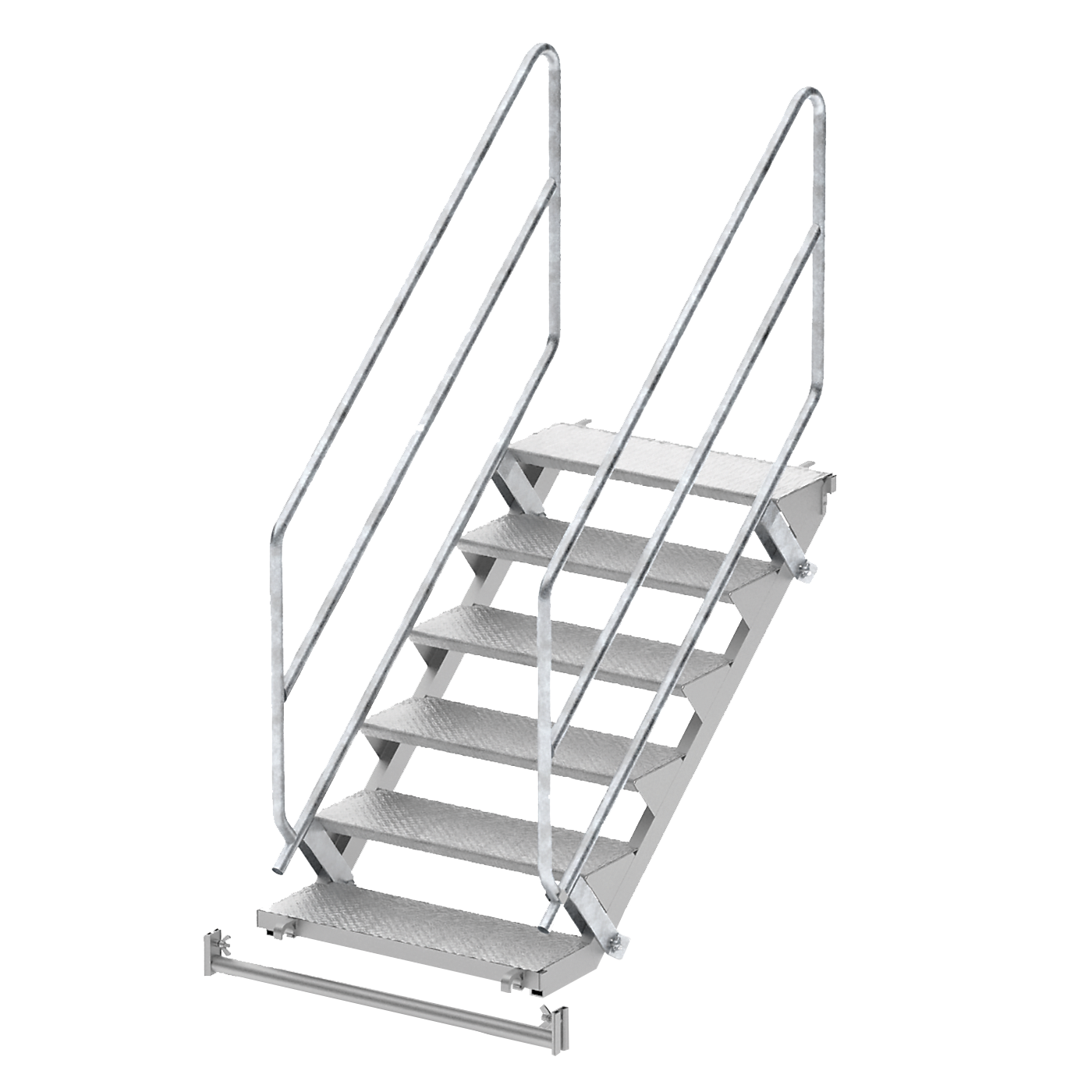

TITAN aluminium scaffold stair

  • Safe access to working platforms on the scaffold
  • With push-fit galvanised handrails
  • Non-slip treads
  • Total rise: 3′-3″ (1.00 m) over a length of 5′-2″ (1.60 m)
  • Fits into the modular size of the ISCHEBECK system

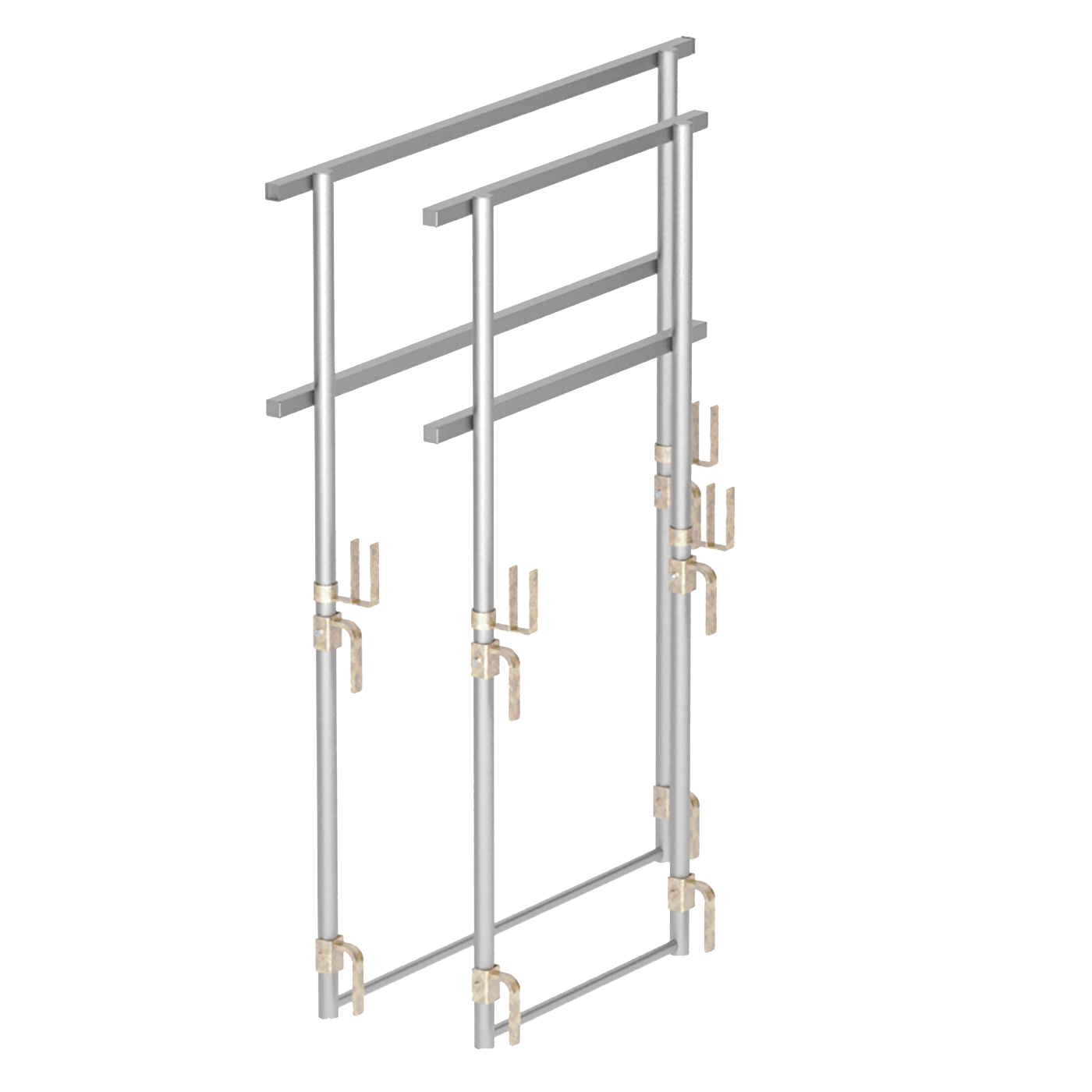

Aluminium handrail frame

  • Ensures safe access
  • The aluminium handrail frames are simply attached to the aluminium ledger frames and can extend over more than one scaffold bay.
  • Available in two sizes: 4′-1″ (1250 mm) and 5′-10″ (1800 mm) centre-to-centre
  • Complies with DIN EN 12811

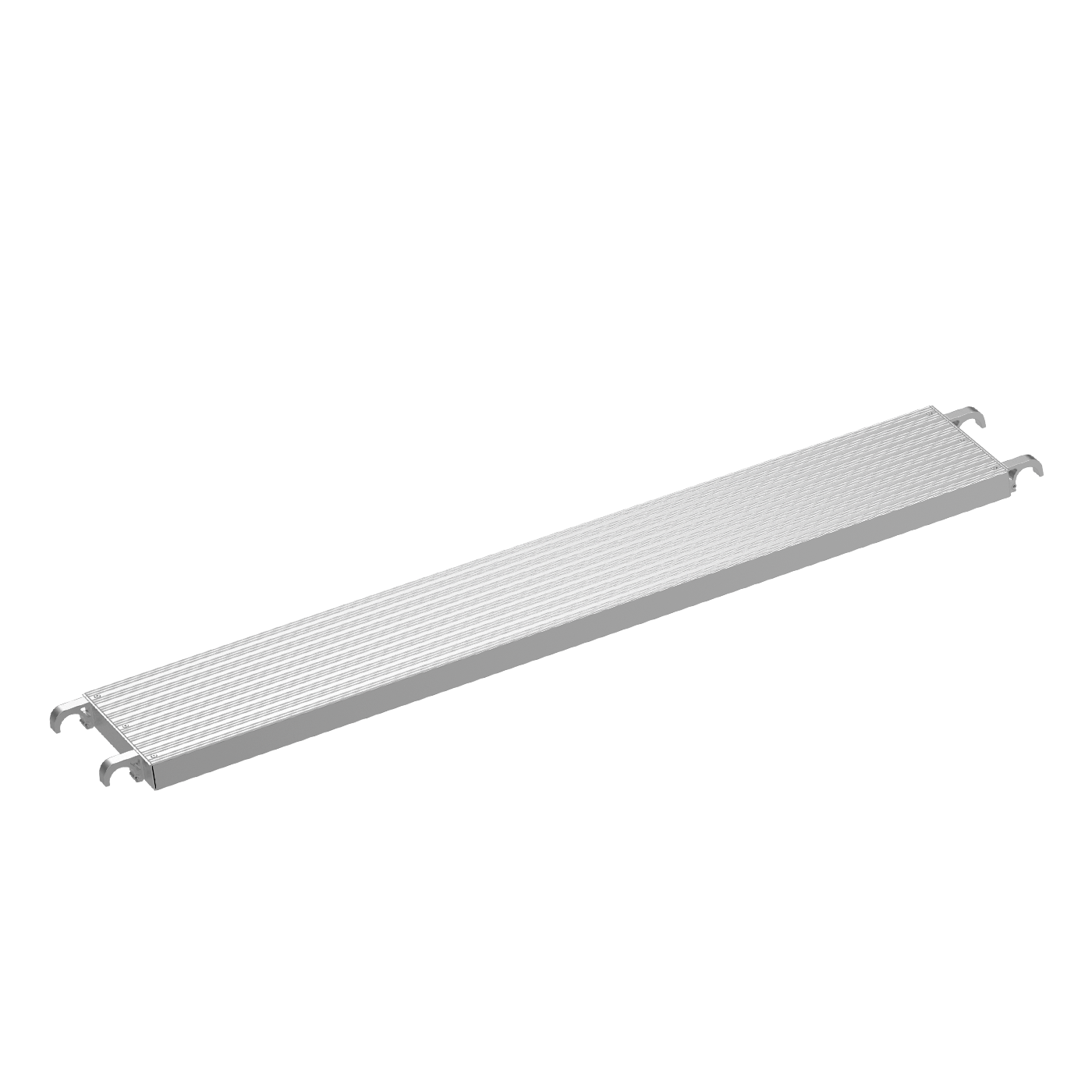

Aluminium scaffold board

  • For creating an integral working platform
  • Simply laid on the aluminium ledger frames
  • Complies with DIN EN 12811, load case 3
  • Easy assembly with hooks
  • Can be mounted on horizontal and vertical scaffolds
  • Available in four sizes for frame sizes from 4′-1″ – 7′-10″ (1.25 to 2.40 m)

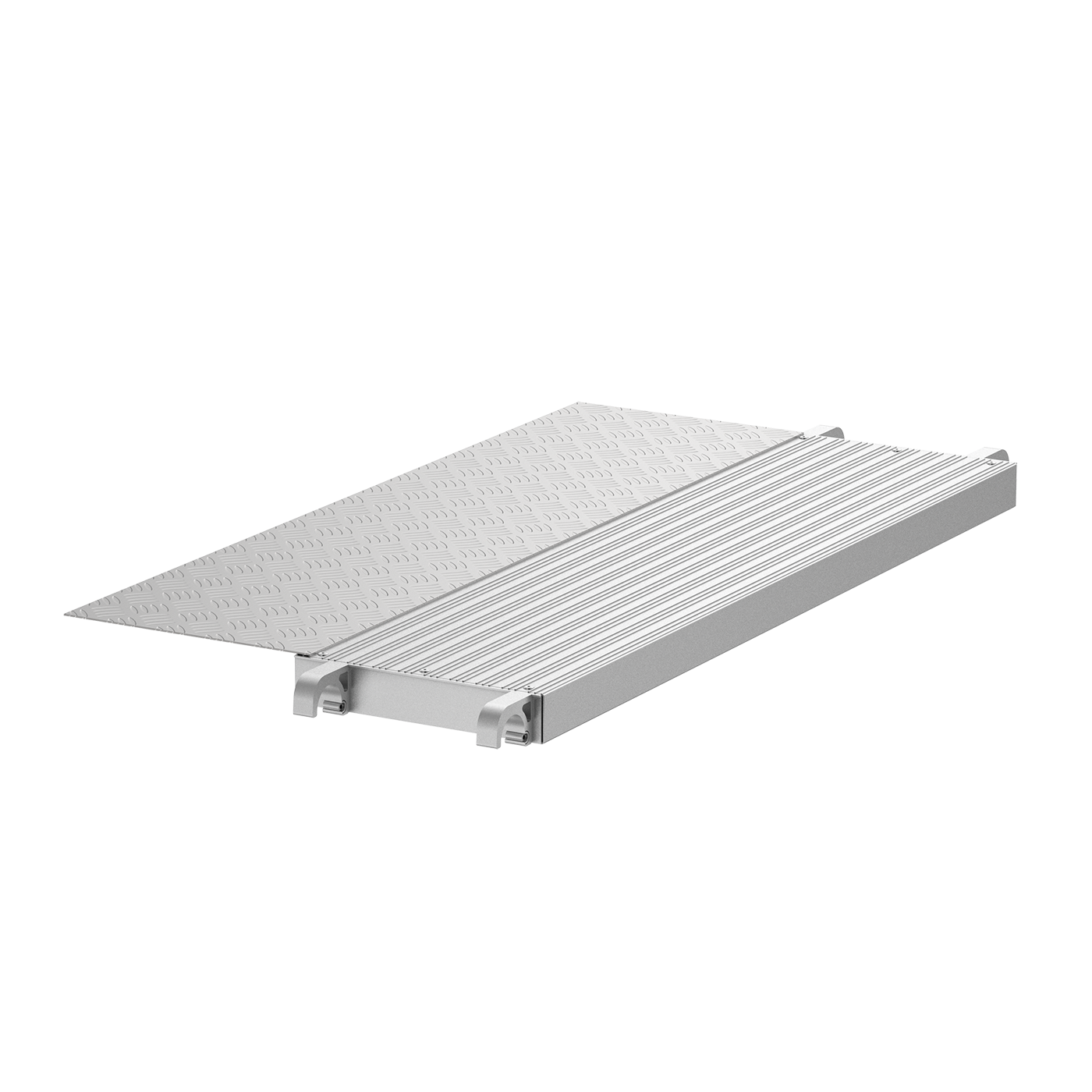

Aluminium cover board

  • For covering gaps, e.g. between scaffold towers over TITAN aluminium ledger frames
  • Aluminium plate with profiled surface riveted to aluminium scaffold board
  • Compatible with our aluminium scaffold boards

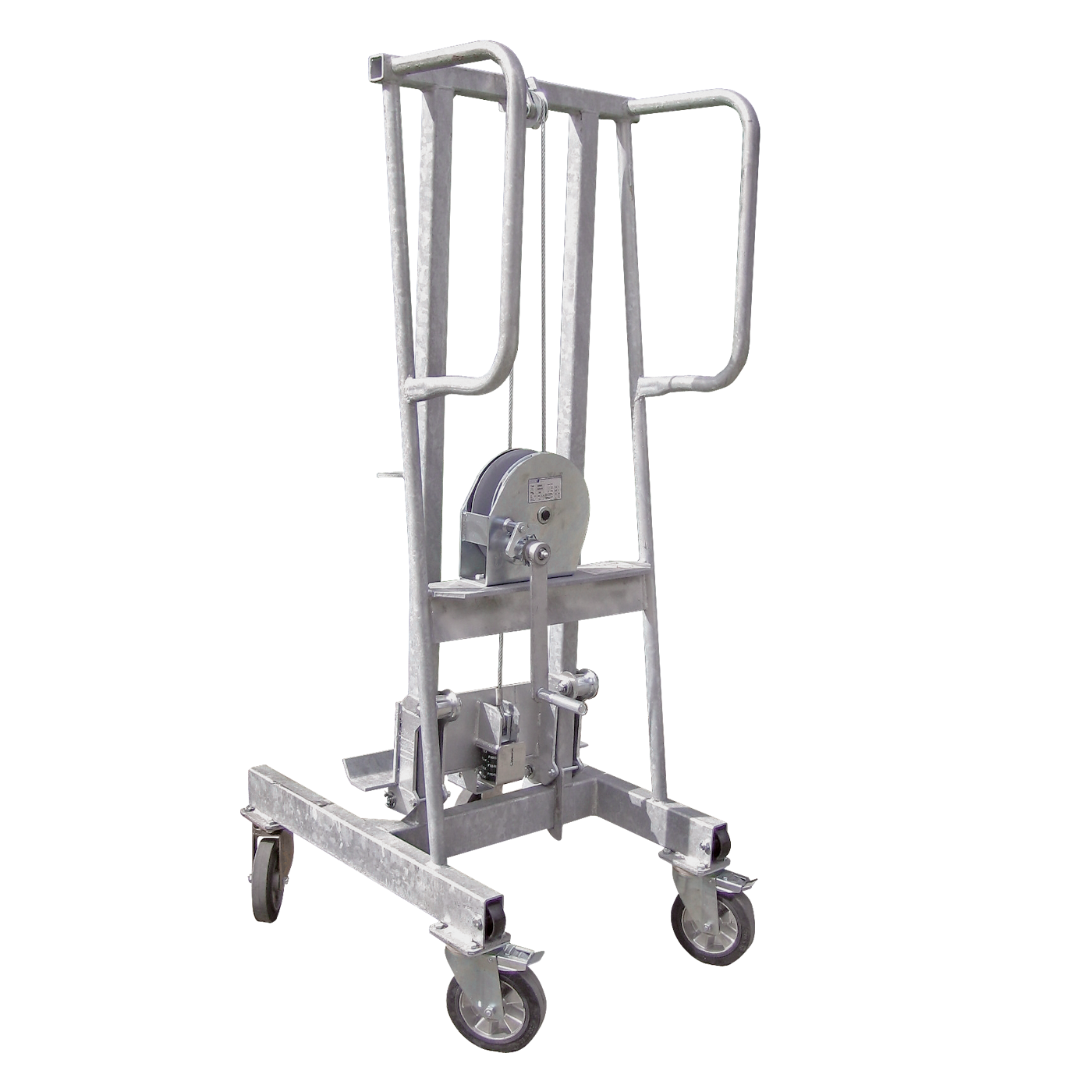

Trolley

  • For transporting falsework elements
  • Max. load 10 kN
