TITAN ALU-FLEX SLAB FORMWORK
Flexible. Simple. Economical.

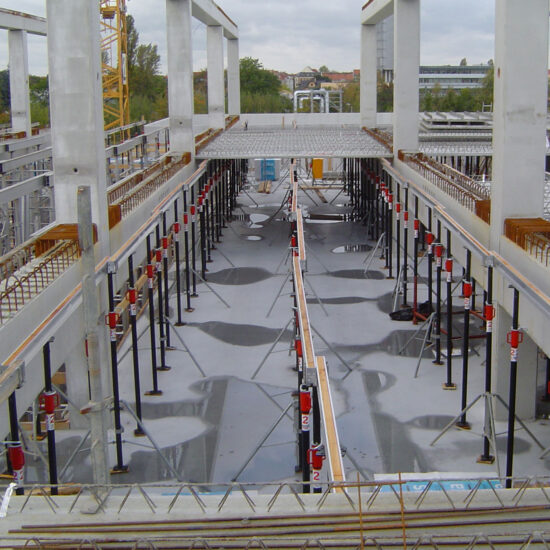

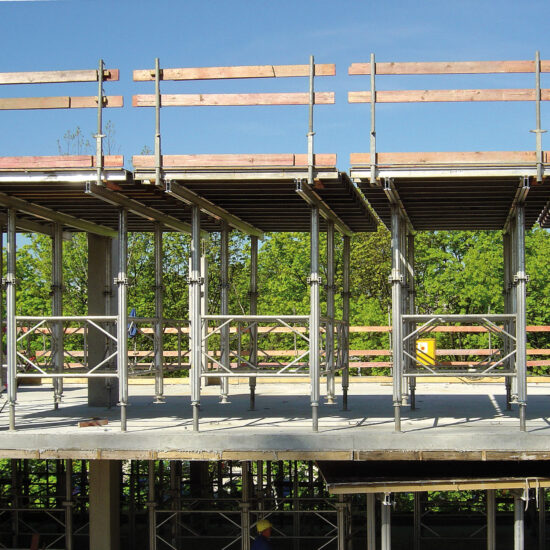

For both in situ and precast concrete floors. The TITAN Alu-Flex slab formwork system with its few components is the fast and flexible choice when employing conventional formwork for large areas and irregular geometries.

The components:
– Tried-and-tested steel or aluminium props
– Aluminium formwork beams – lightweight, robust, strong
– Universal tripods (optional)

The resulting prop loads are generally:
< 4,496 lbs / 20 kN (TITAN 120) or
< 11,240 lbs / 50 kN (TITAN 160 H)

We recommend:

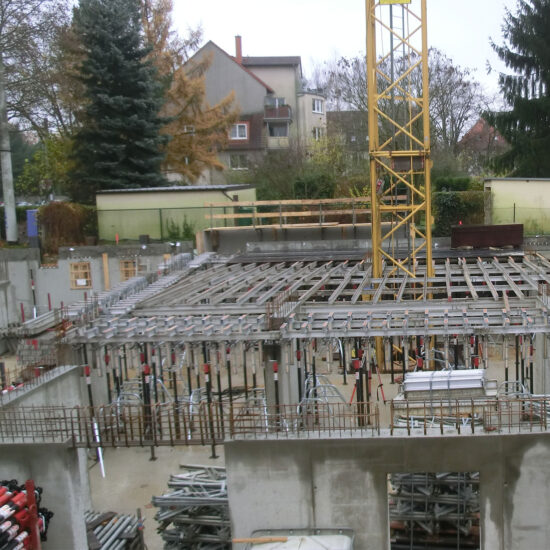

– TITAN S and TITAN E35 steel props
– TITAN HV adjustable legs

To complete the system there are 4-way and fork heads (for safe load transfers), positioners (for accurate positioning) and spring clips (for diverse connections).

Conventional formwork method with just a few components.
The ideal, flexible and quick answer when you need formwork for large areas and irregular geometries.
Low weight guarantees fast, effective working.
TITAN aluminium formwork beams as versatile primary and transverse beams.
Aluminium formwork beams have a good loadbearing capacity for a low self-weight.

Industriebau

Gewerblicher Hochbau

Wohnungsbau

Aluminium formwork beams

Aluminium formwork beam
TITAN 120

With welded end plate
Available in two lengths,
8′-2″ (2.50 m) and 12′-3″ (3.75 m)
4,72″ (120 mm) deep
Weight 1,95 lb/ft (2.9 kg/m)

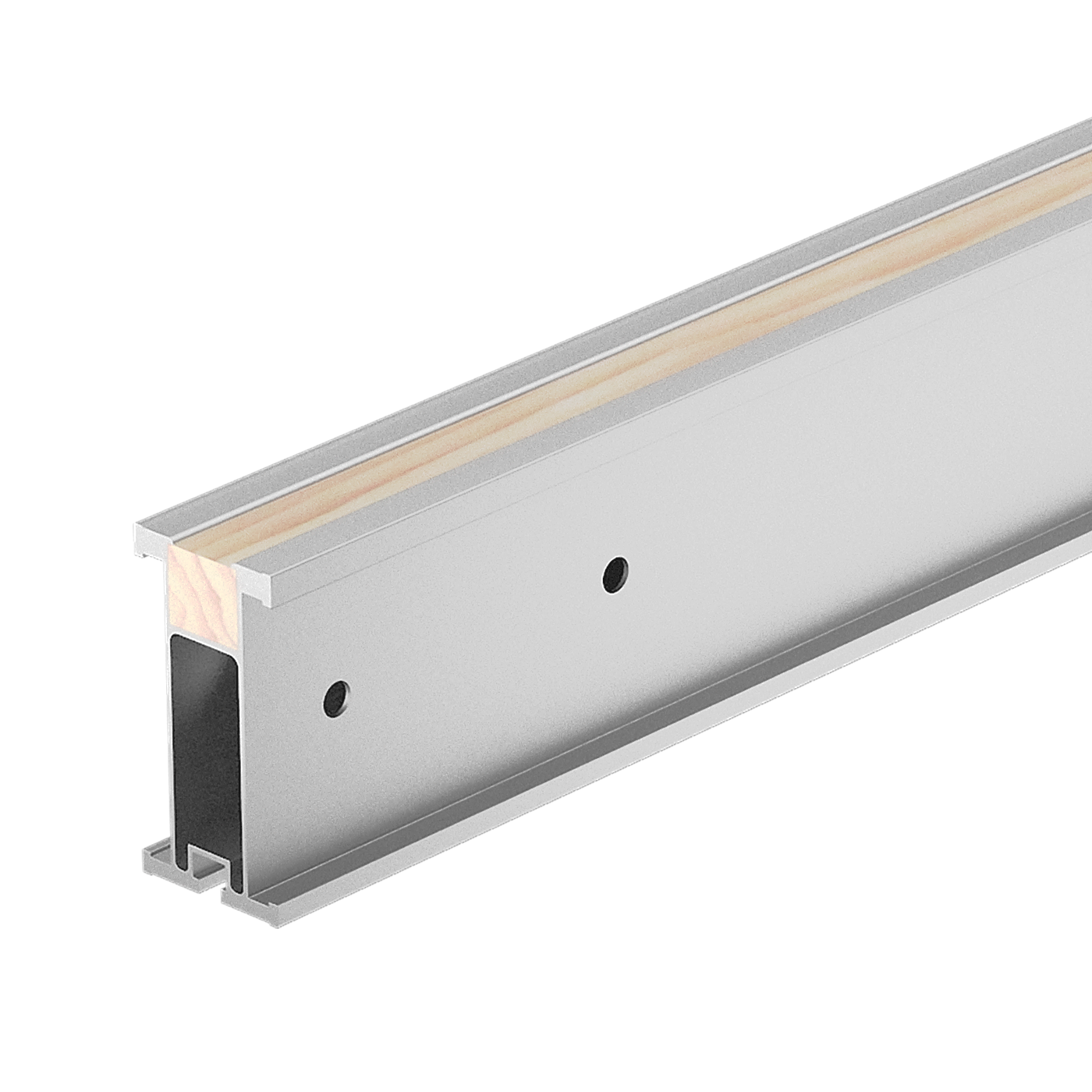

Aluminium formwork beam
TITAN 160 H

With integral nailing batten and multipurpose slot
Available in nine lengths, from 9′-0″ (2.75 m ) to 39′-0″ (11.90 m)
6,3″ (160 mm) deep
Weight 4,4 lb/ft (6.5 kg/m)
